Model: MR

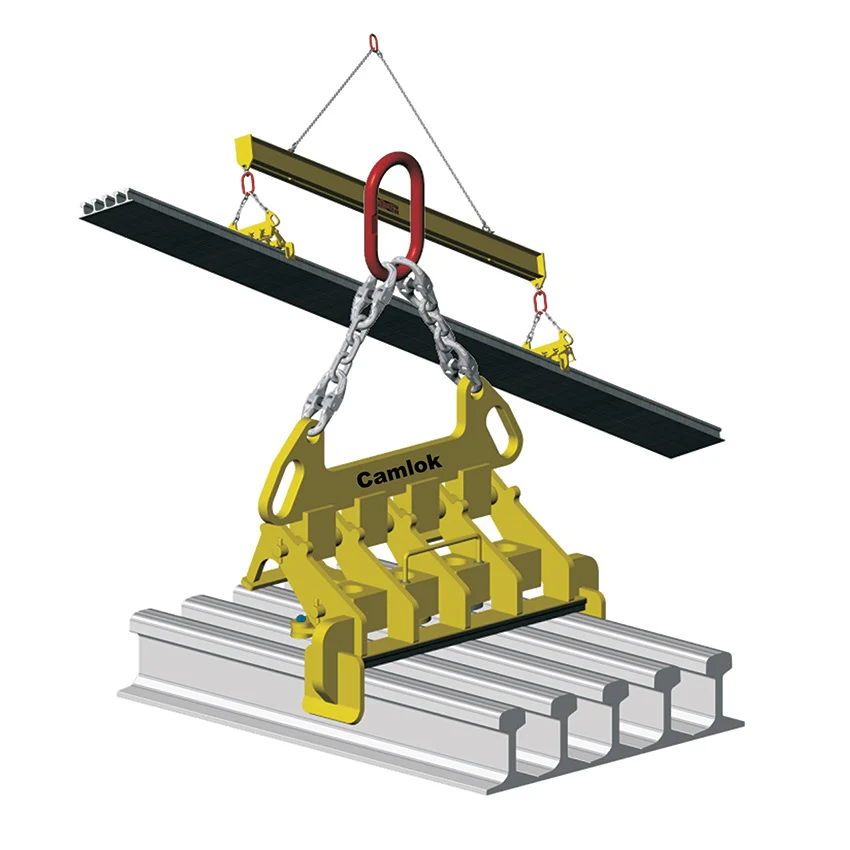

The MR multi rail grabs have been designed to facilitate the fast bulk handling of a specific rail section.
Rails are locked onto the clamp by swivelling toes that locate under the rail-head and top clamp body that rotates in a cam action, pressing a hard rubber lined horizontal beam onto the top of the rail-head. The rubber lined contact beam prevents marking or damage to the rail-head.
Two clamps are recommended at centres of 50% to 60% of rail length for rails up to 20mtrs long. For rails longer than 20mtrs, three clamps at centre distance between outer clamps of 65% to 75% of rail length must be used.
CLAMP MUST BE WITHIN THE WORKING LOAD LIMIT
Rails to be lifted must be stacked with bottom flange toes touching. All rails must be of the same rail section size.
Supplied with an E.C Declaration of Conformity.
Description
Model: MR
The MR multi rail grabs have been designed to facilitate the fast bulk handling of a specific rail section.
Rails are locked onto the clamp by swivelling toes that locate under the rail-head and top clamp body that rotates in a cam action, pressing a hard rubber lined horizontal beam onto the top of the rail-head. The rubber lined contact beam prevents marking or damage to the rail-head.
Two clamps are recommended at centres of 50% to 60% of rail length for rails up to 20mtrs long. For rails longer than 20mtrs, three clamps at centre distance between outer clamps of 65% to 75% of rail length must be used.
CLAMP MUST BE WITHIN THE WORKING LOAD LIMIT
Rails to be lifted must be stacked with bottom flange toes touching. All rails must be of the same rail section size.
Supplied with an E.C Declaration of Conformity.
