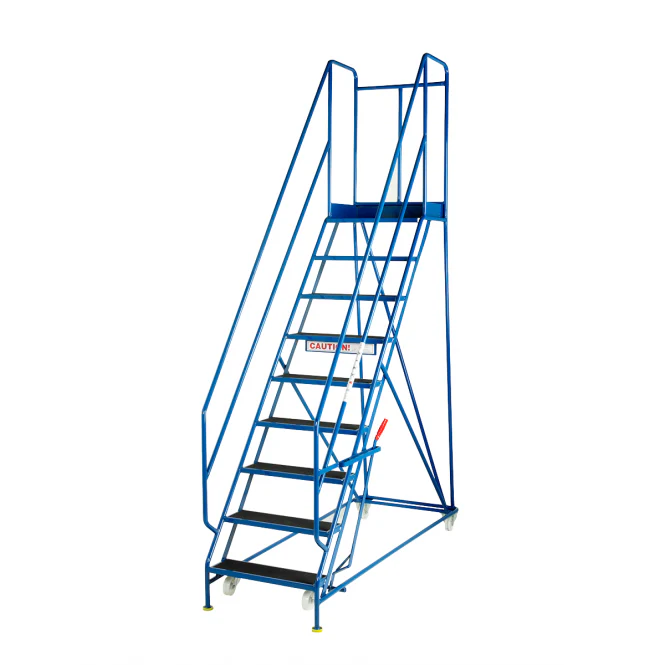

Mobile Steps with Handlock Anchorage

Model: S0/S1

Choice of 610mm or 760mm tread width. Hand built with attention to detail, both in design and manufacture, to ensure total reliability and many years of arduous operation.

All steelwork blue epoxy finish. Wheels: Front swivel and rear fixed castors with 100mm diameter white nylon wheels and roller bearings. All models fitted with hand lock anchorage. When locked the front feet rest firmly on the floor, fitted with protective plastic floor pads. Retracting castors fitted as standard.

Tread width 610mm / Platform W x D 610 x 457mm

No. of Treads (inc platform)	Average Working Height (mm)	Platform Height (mm)	Overall Dimension (H x W x D) mm
4	2400	915	1875 x 760 x 1085
5	2700	1145	2105 x 760 x 1260
6	2900	1370	2330 x 760 x 1435
7	3100	1600	2560 x 760 x 1690
8	3400	1830	2790 x 760 x 1690
9	3600	2060	3020 x 760 x 2045
10*	3800	2285	3245 x 760 x 2225
11*	4000	2515	3475 x 760 x 2400
12*	4300	2745	3705 x 760 x 2580



Tread width 760mm / Platform W x D 760 x 457mm

No. of Treads  (inc platform)	Average Working Height (mm)	Platform Height (mm)	Overall Dimensions (H x W x D) mm
5	2700	1145	2105 x 915 x 1260
6	2900	1370	2330 x 915 x 1435
7	3100	1600	2560 x 915 x 1690
8	3400	1830	2790 x 915 x 1865
9	3600	2060	3020 x 915 x 2045
10*	3800	2285	3245 x 915 x 2225
11*	4000	2515	3475 x 915 x 2400
12*	4300	2745	3705 x 915 x 2580
13*	4500	2975	3935 x 915 x 2755
14*	4700	3200	4160 x 915 x 2935



*10 tread and above supplied in 2 halves for transport purposes.
