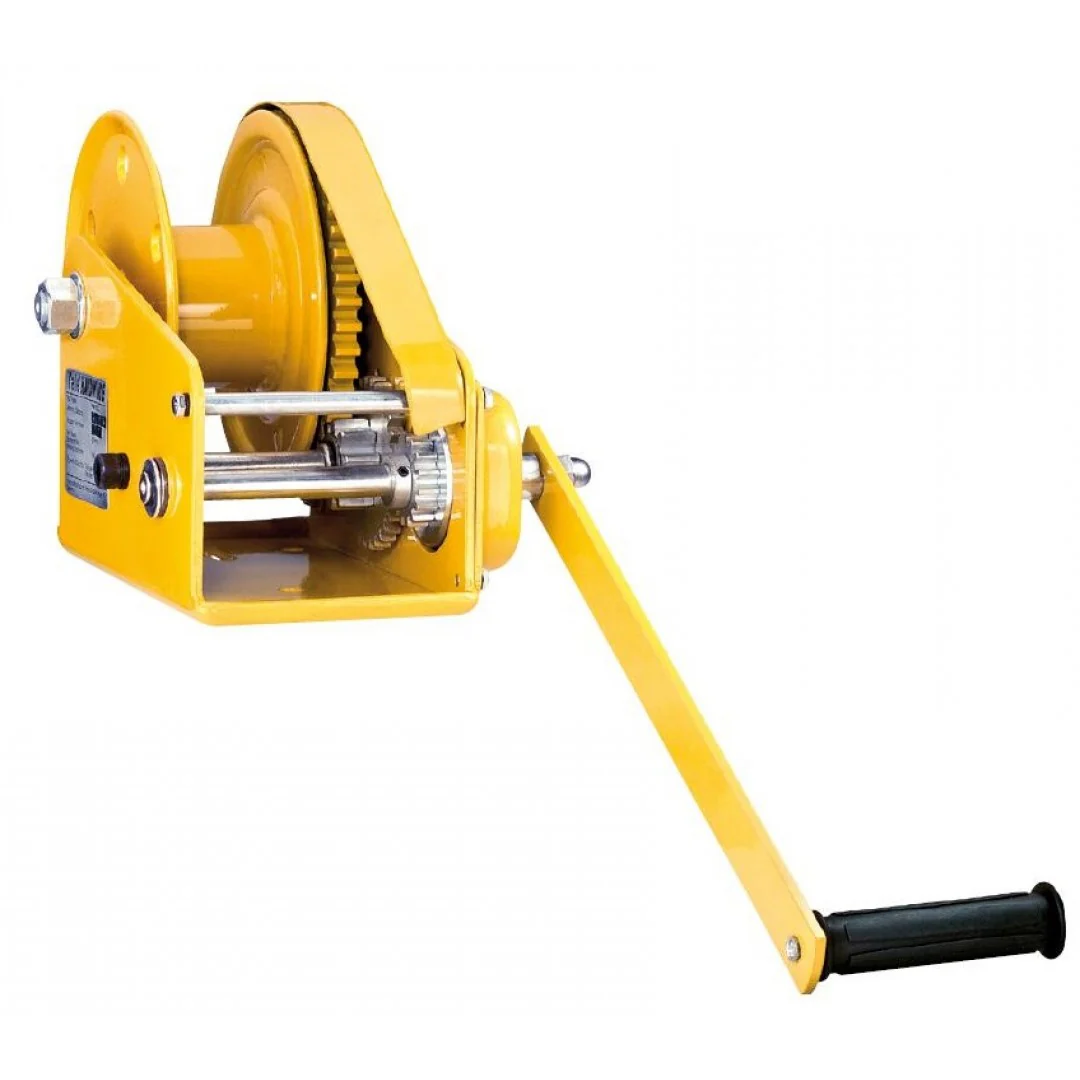

-65%Pfaff Spur Gear Drive Manual Wire Rope Winch—
$172.36
$60.33The Story
Model: HW-C
Suitable for use in areas where electricity is not available or where electric appliances can not be safely operated on account of water, mud or dirt.
Features and Benefits:
- Winch housing and rope drum from robust steel plate for high versatility.
- Rope drum on bush bearings for flawless rope lead-off.
- Spur gear drive for optimal efficiency.
- Compact design.
- Easy and quick mounting onto walls, poles, towers etc.
- Pivotable handle.
- Automatic load pressure brake for safe holding and extremely sensitive lowering of the load. Unintentional brake release is prevented even with swinging loads.
- Comes complete with a high-visibility, yellow powder coated finish as standard.
- Suitable for operation in ambient temperatures of -100°C to +500°C.
| Model | Cap. 1st Rope Layer | Cap. Top Rope Layer | Crank Effort 1st Rope Layer | Ratio | Reccomm Rope Dia | Min. Breaking Load of Wire Rope | Number of Rope Layers |
| HW-C30 | 300daN | 120daN | 22daN | 4.2:1 | 5mm | 13.6kN | 9 |
| HW-C80 | 800daN | 400daN | 20daN | 10:1 | 8mm | 34.8kN | 7 |
Supplied with an E.C Declaration of Conformity.
