Tiger Corrosion Resistant Brake Hand Winch

Model: BHW-CR

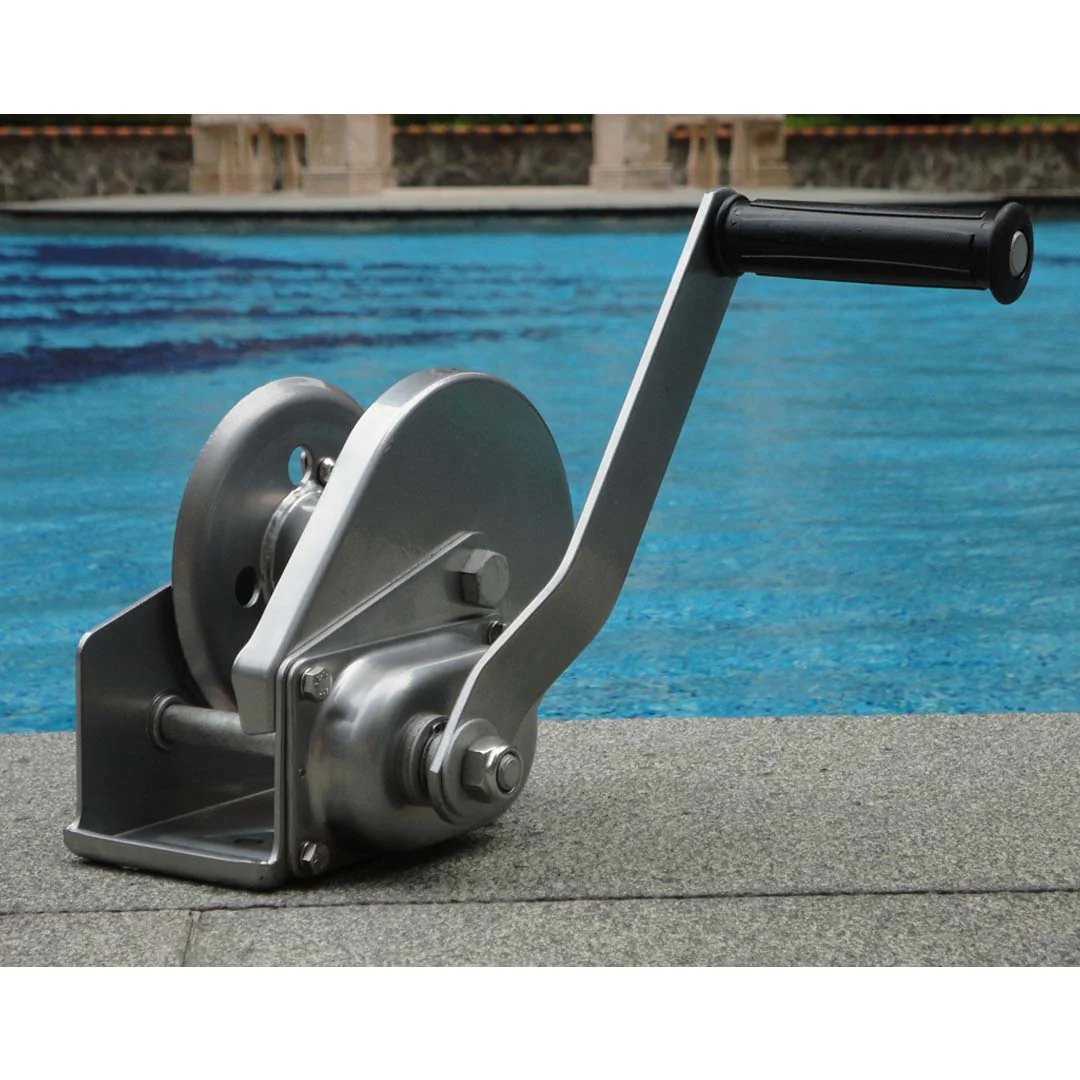

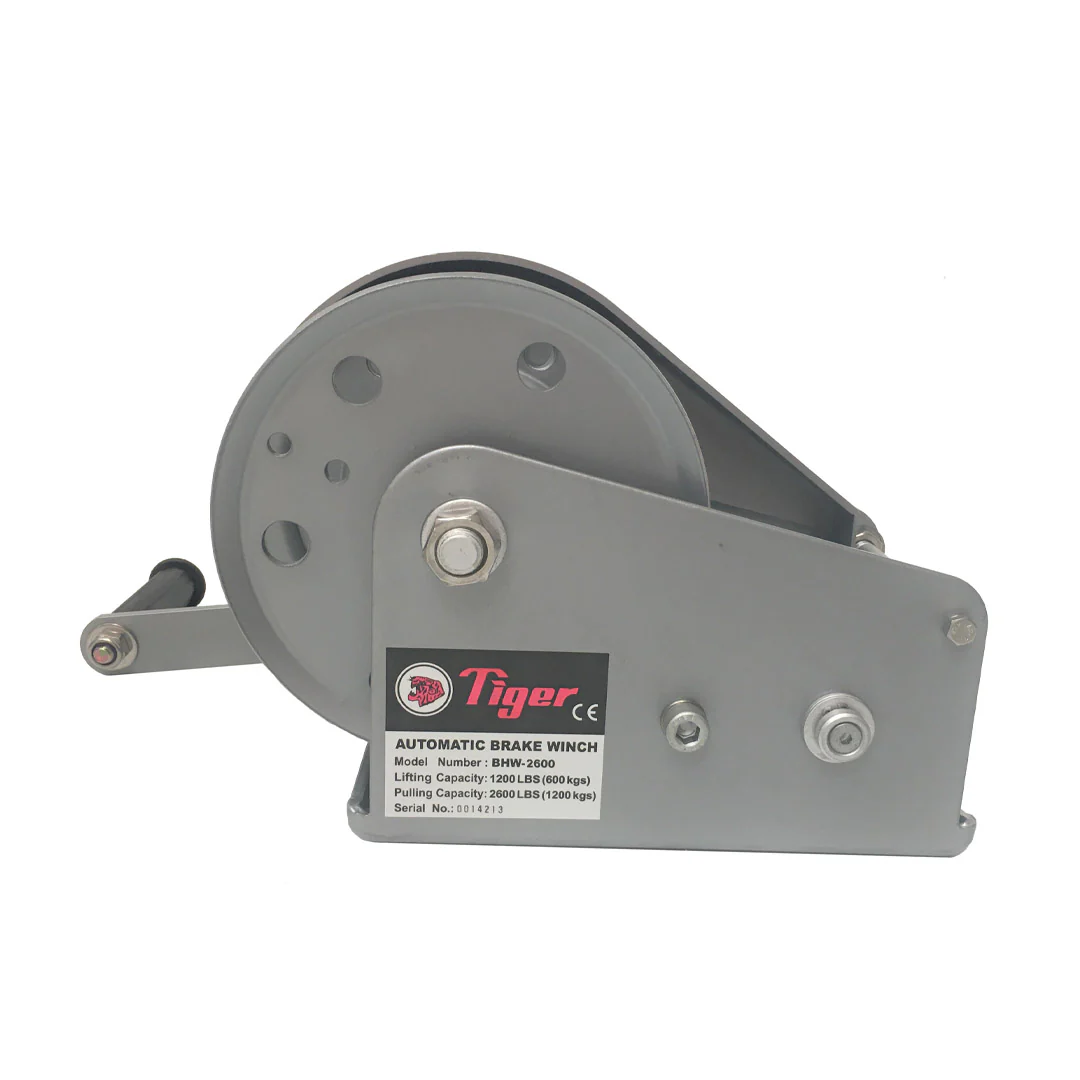

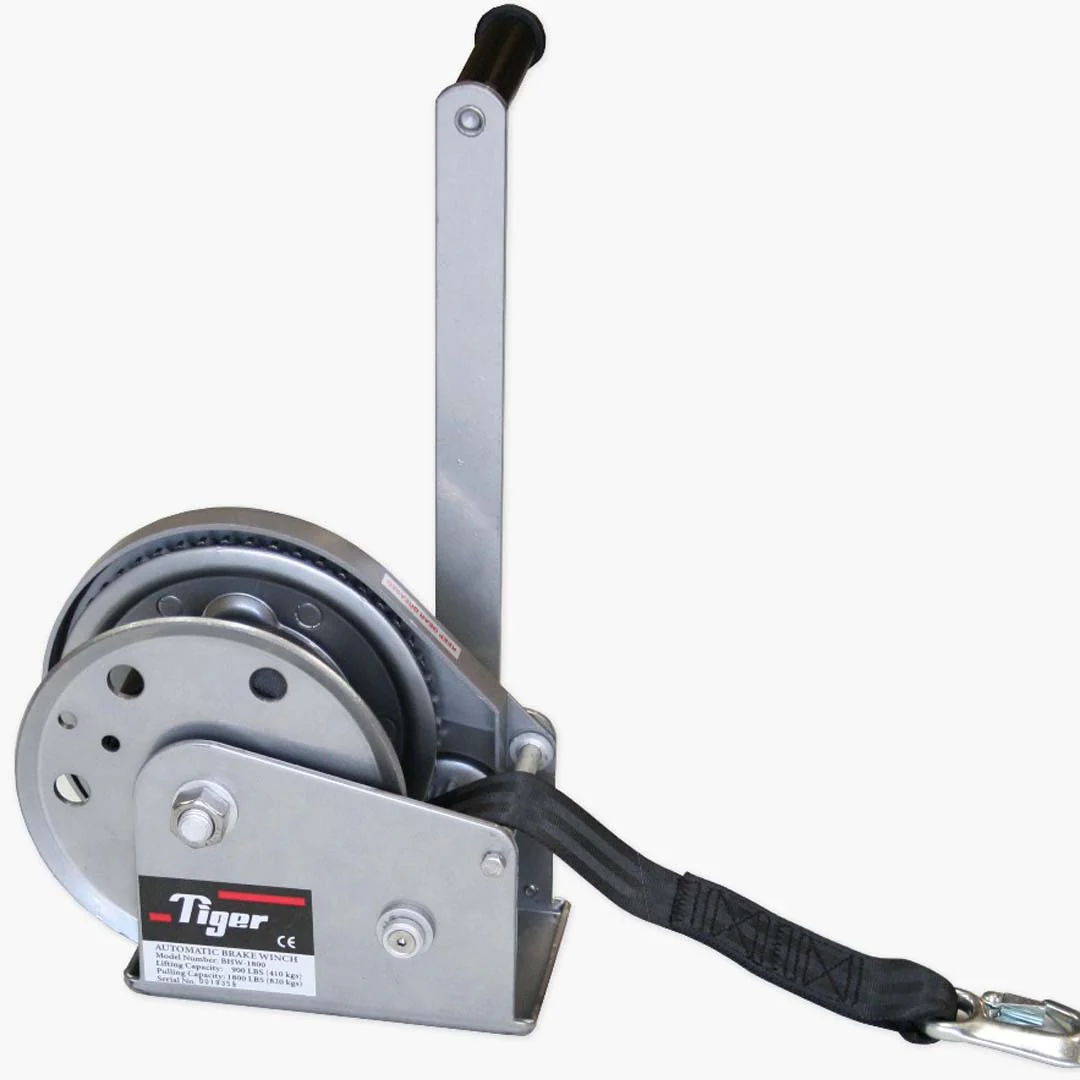

The Tiger brake hand winch is a high quality multi-purpose winch used for a variety of lifting and hoisting applications. The automatic brake ensures the load remains suspended when the crank is released and avoids unchecked descent of the load; there is no freewheeling making the hand winch extremely safe to operate. All the mechanical components are enclosed for protection against dust, dirt and rain contamination. The BHW is compact and lightweight yet rugged and durable.

This model is protected using Tigers unique formulation giving unprecedented long term reliability and superior corrosion resistance and protection in the most severe conditions. The coating provides excellent friction protection and has been proven to be effective through at least 1000 hours of the ASTM B 117 Salt Spray Test. The coating fives the properties of stainless steel without the cost implications.

	BHW-0800-CR	BHW-1200-CR	BHW-1800-CR	BHW-2600-CR
Lifting Capacity First Layer	800lbs ¦ 360kgs	1200lbs ¦ 550kgs	1800lbs ¦ 800kgs	2600lbs ¦ 1180kgs
Lifting Capacity Last Layer	400lbs ¦ 180kgs	600lbs ¦ 275kgs	900lbs ¦ 400kgs	1300lbs ¦ 590kgs



Supplied with an E.C Declaration of Conformity.
