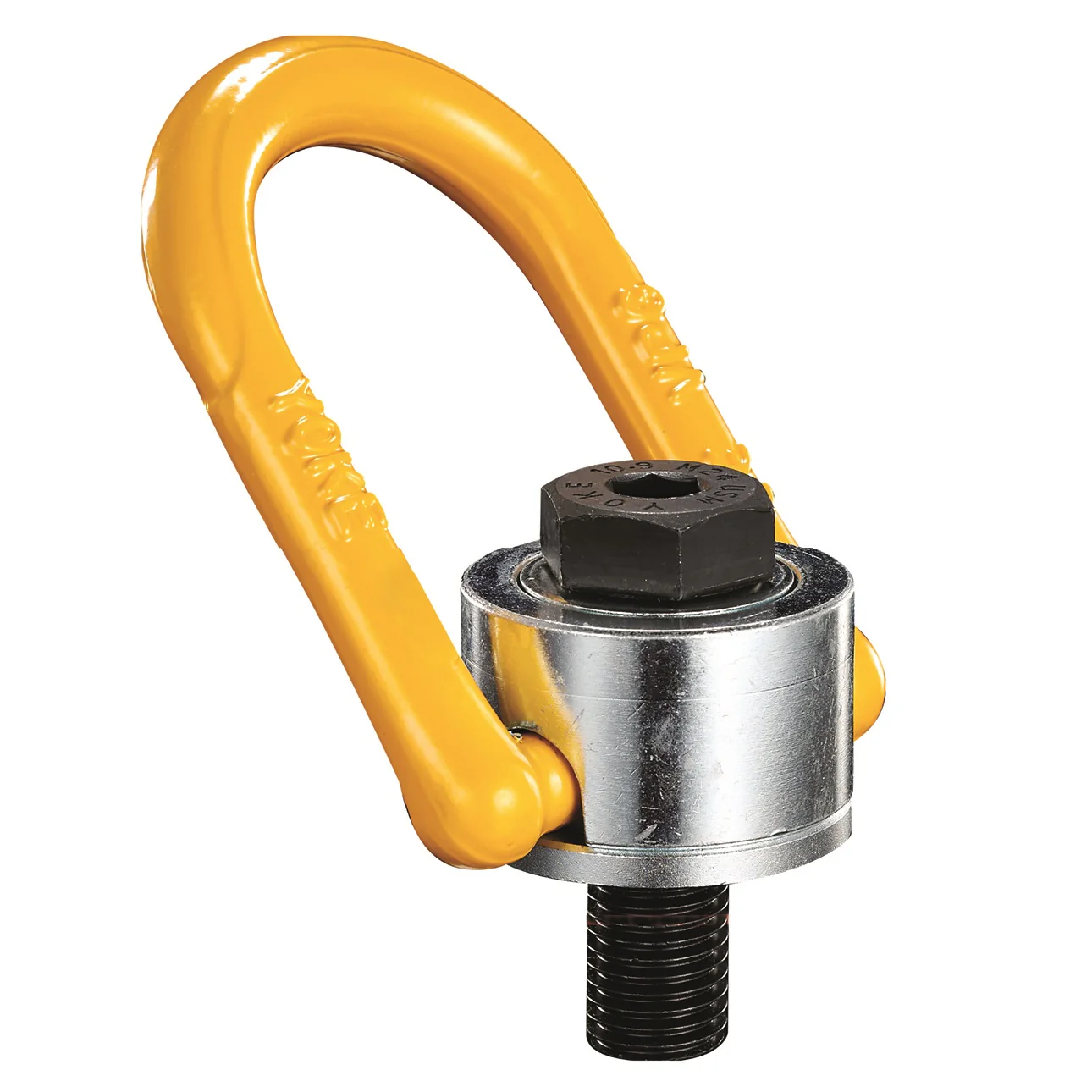

-65%YOKE Type 231 Swivel Hoist Ring—
$59.79
$20.93The Story
Model: 8-231

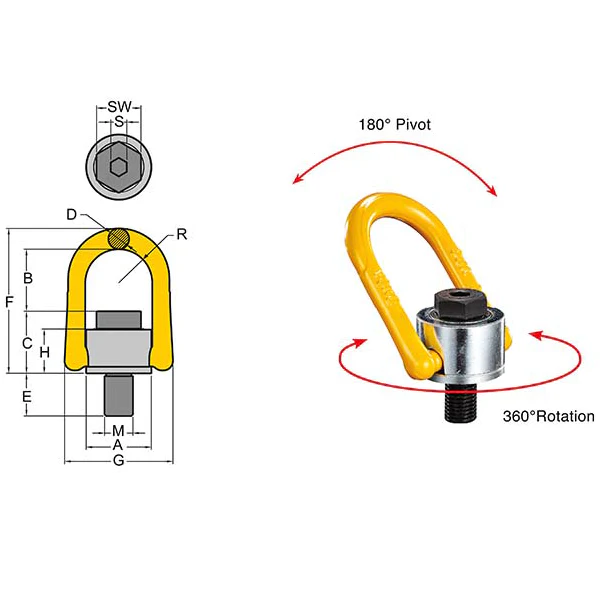

- Rotates through 360° and pivots 180°, and simultaneously allows lifting from any direction.

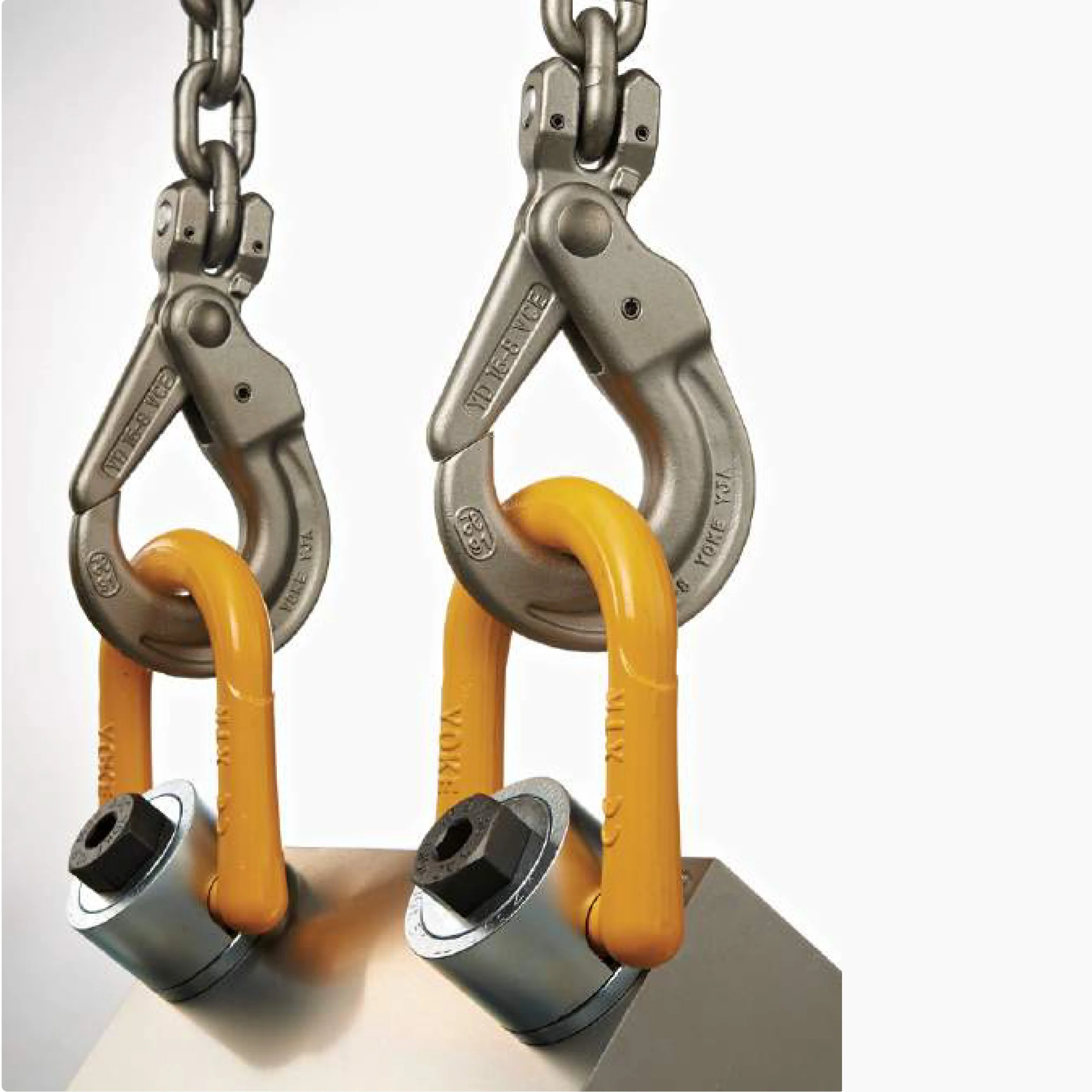

- Suited for lifting objects with no obvious attachment points.
- Manufactured from forged alloy steel, quenched and tempered and tested in accordance with EN1677-1.
- Load rated parts are 100% magnaflux crack detected & the individual forged parts & cap screw are traceable to Test
- Certification.
- Bolts are Metric thread 10.9.
- Proof tested to 2.5 times the WLL and Fatigue rated to 1.5 times the WLL.
- Design Factor 4 : 1
- All YOKE Lifting points meet or exceed all the requirements of ASME B30.26.
- Quick and simple assembly, just a tapped hole is required.
- Supplied with an E.C Declaration of Conformity.
